Aluminum Foil VCI Packaging Film
1. The WVTR of Reinforced Aluminum VCI Film is as low as 0.9 g/m²·24h, effectively blocking moisture and condensation.
2. Aluminum Plastic Composite VCI Film features a tensile strength of 385 N in the MD (Machine Direction) and 347 N in the CD (Cross Direction), with a burst strength of 1.6 MPa.
3. Under sealed conditions, Aluminum Composite Anti Rust Film provides a protection period of 12–24 months, making it suitable for long-term sea transport and storage.
- CVCI
- Liaoning, China
- 14 days after payment
- 1500 tons per month
- Information
Product introduction:
Heavy Duty VCI Barrier Film is a high-barrier, heavy-duty anti-rust packaging material composed of a multi-metal VCI vapor-phase anti-rust film, an aluminum foil layer, and a reinforced woven fabric. The product features a standard basis weight of approximately 198 g/m²; utilizing a reinforced composite structure, it offers exceptional overall packaging stability.
Key Product Advantages:
1. The product's measured Water Vapor Transmission Rate (WVTR) is a mere 0.9 g/m²·24h—significantly superior to the standard requirement (≤1.5 g/m²·24h). This effectively blocks moisture ingress during maritime transport and in high-humidity environments, thereby mitigating the risk of metal corrosion caused by condensation.
2. The product demonstrates a Longitudinal Tensile Strength (MD) of 385 N and a Cross-Directional Tensile Strength (CD) of 347 N—both exceeding the standard requirement (≥300 N). Possessing excellent tear resistance and puncture resistance, it is ideally suited for the packaging of large-scale equipment and heavy-duty metal goods.
3. The measured seal strength reaches 21 N/15mm—far surpassing the standard value (≥10 N/15mm). This effectively enhances the overall integrity of the packaging seal, thereby minimizing the risk of packaging failure during transit.
4. The product complies with the requirements of the EU RoHS Directive, REACH Regulation, and the GB/T 13690 standard. It is free from hazardous restricted chemical substances, thereby meeting the packaging requirements for international export.
Does your product require VCI rust-proof packaging?
CVCI - a professional VCI rust-proof packaging manufacturer, protecting your products
Contact Us Today to request our latest B2B price list and apply for a Commercial Sample.Grammage | 195±10g/m² | 198 | |
Tensile strength | MD | ≥300N | 385 |
CD | ≥300N | 347 | |
Bursting strength | ≥1.4Map | 1.6 | |
Vapor transmission | ≤1.5g/m² · 24h | 0.9 | |
Sealing strength | ≥10N/15mm | 21 | |
Adoption Test | 3 Periods | Pass | |
Touching corrosion Test | Pass for steel | Pass | |
Pass for aluminum | Pass | ||
Customer Application Case:

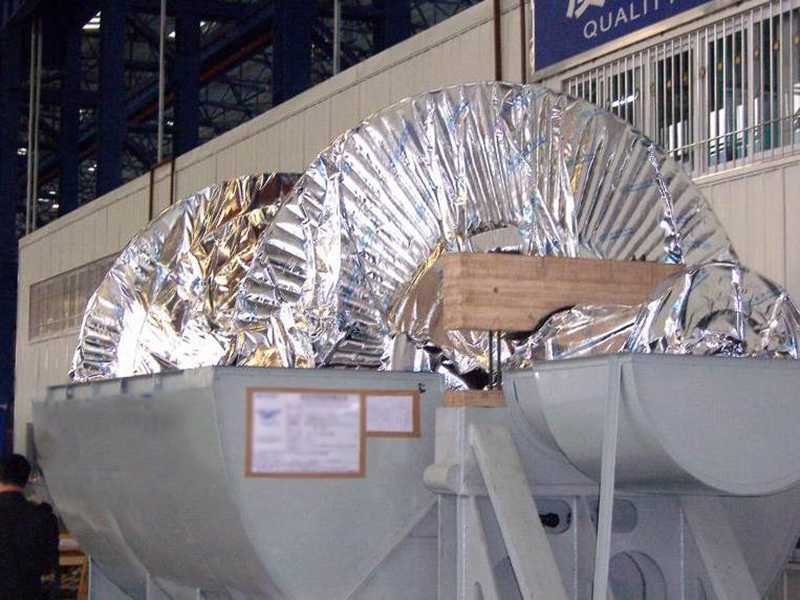

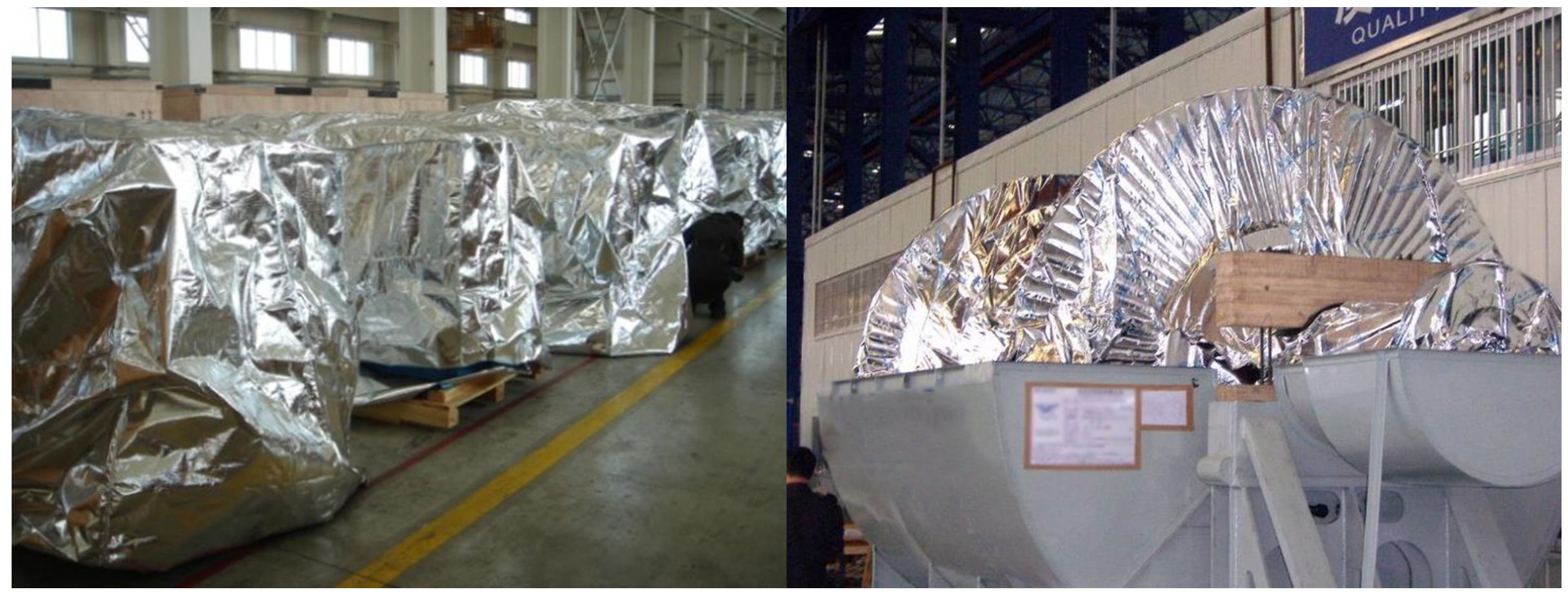

A major exporter of heavy machinery and equipment faced significant challenges when shipping large-scale steel structures to Southeast Asian markets; with sea transit times exceeding 40 days, their standard PE packaging consistently suffered from issues related to condensation and localized corrosion.
Following the adoption of Heavy Duty VCI Barrier Film:
Upon arrival at the destination port, the equipment exhibited no visible signs of corrosion. The packaging damage rate dropped by approximately 70%, the stability of the goods during long-term storage (exceeding 12 months) was ensured, and the customer complaint rate declined by approximately 80%. The product has now been successfully and consistently integrated into the company's export packaging system.
Maritime Transport and High-Humidity Protection Capabilities
For scenarios involving long-term maritime transport and export warehousing, purchasers are primarily concerned with whether a product truly possesses stable moisture-proofing and barrier capabilities. The Reinforced VCI Barrier Packaging features a measured Water Vapor Transmission Rate (WVTR) of just 0.9 g/m²·24h—a performance significantly superior to that of standard packaging materials—thereby effectively mitigating the risk of metal corrosion caused by container condensation and high-humidity environments. This product is suitable for maritime environments where humidity levels consistently exceed 80%; under sealed conditions, it offers a protection duration of 12 to 24 months.
R&D and Customization:
CVCI has dedicated nearly 40 years to the research, development, and manufacturing of VCI anti rust packaging materials. Our product portfolio encompasses anti-rust paper, anti-rust films, and composite barrier packaging materials, backed by fully integrated manufacturing capabilities ranging from raw material formulation and R&D to finished product production. CVCI's manufacturing facility features multiple automated lamination and coating production lines, ensuring stable, high-volume delivery capabilities. With a monthly production capacity reaching hundreds of tons, we are fully equipped to fulfill long-term export orders and meet the continuous procurement demands of large-scale industrial clients.
Quality Management:
CVCI has established a comprehensive testing system that focuses on rigorous, end-to-end quality control—specifically monitoring VCI release performance, barrier properties, and mechanical strength. Our core laboratory is equipped with advanced instrumentation—including tensile strength testers, Water Vapor Transmission Rate (WVTR) testing equipment, and corrosion testing systems—enabling us to conduct standardized product validation and ensure consistent, stable performance data for every production batch. Our products comply with various international and domestic environmental and industrial standards—including RoHS, REACH, and GB/T 13690—and we provide technical documentation such as SGS test reports, SDS, and TDS to support our clients' auditing processes.
Customization Capabilities
To enhance procurement efficiency for industrial clients, our standard MOQ is 300 kg, with a typical lead time of approximately 7–10 days. We support a wide range of functional solutions—including flame retardancy, anti-aging properties, UV resistance, custom sizing, and logo printing—which can be tailored to meet the specific requirements of various export environments and industry sectors.
FAQ:
1. What is the standard thickness of the product?
The standard thickness is approximately 190μm.
2. What is the maximum available width?
The maximum width can reach 12 meters.
3. What is the product's basis weight?
The standard basis weight is approximately 198g/m².
4. What is the protection duration?
Under sealed conditions, it can last for 12–24 months.
About us:
CVCI was founded in 1989 and since then, the company has been devoting its efforts to the development of new technologies and the production of VCI (Vapor Corrosion Inhibitor) materials as well as anti corrosion industrial packaging solutions. Backed by 35 years of experience, the company has spread its exports to more than 40 countries and regions. CVCI has strong expertise and a long record of experience in protective applications such as long-term sea transport, high-humidity storage, and heavy industrial machinery. Having been working with thousands of industrial customers, the company has set up a reliable global supply chain network. The protective solutions provided by the company are capable of offering protection for 12 to 24 months, and they comply with internationally recognized environmental and industrial standards including RoHS, REACH, and GB/T.
