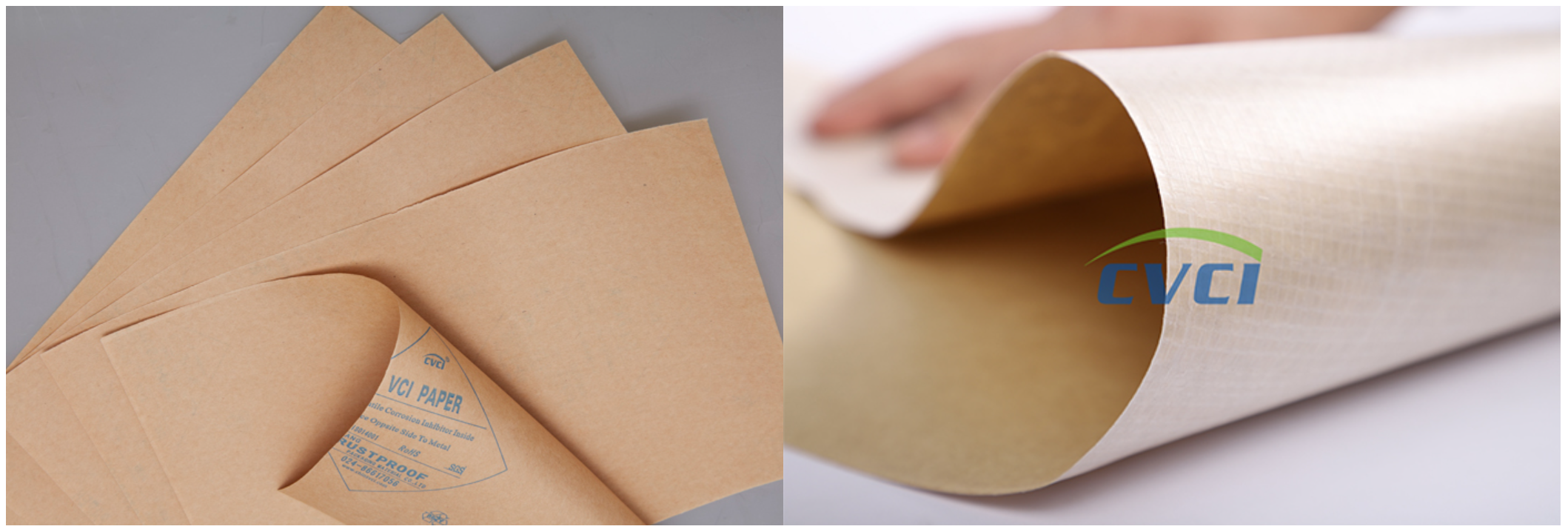

Barrier Type VCI Paper

Introduction of barrier VCI paper:

The product weight can be adjusted within the range of 80–180 g/m² to meet application requirements, enhancing moisture resistance while maintaining strength, making it suitable for environmentally sensitive metal products. The product's water vapor transmission rate (WVTR) can be controlled to ≤5 g/m²/day (ASTM E96), significantly superior to ordinary rust-proof paper, effectively reducing the impact of high humidity environments on metals and achieving a rust-proof period of 12–24 months. The product's applicable temperature range is typically -20℃ to 60℃, meeting the needs of sea freight, warehousing, and inter-regional transportation. Detailed technical specifications (TDS) and test reports are available upon request.

Advantages of VCI packaging paper:

1. Our VCI packaging paper has excellent VCI anti-rust protection and contact anti-rust effects, and can effectively extend the anti-rust period of metal products under different environments.

2. The barrier performance of Anti Rust VCI Paper is better than that of ordinary anti-rust paper, and it has a high barrier capacity for water vapor, which is equivalent to adding a layer of plastic film to the outer surface of ordinary anti-rust paper, which greatly reduces the water vapor permeability and enhances the protective effect of the metal surface.

3. The physical strength and tear resistance of barrier VCI paper and VCI packaging paper are good. Even if it is used for packaging large and heavy metal equipment or steel coils, it can maintain the overall stability and integrity of the packaging and avoid anti-rust failure caused by damage during handling or transportation.

4. Our barrier VCI paper does not contain phosphates, chromates and heavy metals, and complies with international environmental protection directives such as EU ROHS, PFOS, PFOA and REACH. It is harmless to personnel and the environment during use.

Application scope of Anti Rust VCI Paper:

Our Anti Rust VCI Paper is suitable for the anti-rust packaging of various metal materials, and is widely used in the protection of ordinary cold-rolled plates, galvanized plates, tinplates, chrome-plated plates, oriented silicon steel and non-oriented silicon steel in the metallurgical industry. VCI packaging paper is particularly suitable for the inner core packaging of steel coils and steel plates, which can effectively prevent rust problems caused by environmental moisture during long-term storage and transportation. For metal products that need to be stored for a long time or often undergo cross-border transportation, our Anti Rust VCI Paper can reduce the risk of metal moisture and corrosion, so barrier VCI paper can also be used in precision machinery and equipment, automotive parts, power facilities and military equipment and other fields with extremely high anti-rust requirements, providing comprehensive and lasting protection for various metal products.

Precautions for using Anti Rust VCI Paper:

VCI packaging paper must be strictly operated in accordance with GB/T 14188 standards during use. The surface of the packaged metal must be kept clean and dry, and no oil stains, dust, sweat stains and other pollutants must remain. During cutting, placement and packaging, avoid contamination of Anti Rust VCI Paper, especially prohibiting direct contact with the surface of the anti-rust layer with bare hands. When packaging, be sure to ensure that the paper surface of the barrier VCI paper faces the metal surface, and at the same time ensure that the overlap is sealed intact to avoid water vapor penetration caused by gaps. The working environment must be kept clean and dry to prevent water droplets, condensed water or foreign matter from contaminating the Anti Rust VCI Paper and the metal surface. After packaging, during loading, unloading, storage and transportation, the packaging should be prevented from being damaged and the overall sealing should be maintained. If the VCI packaging paper is not used up at one time, it must be sealed and stored in time to prevent the volatilization of the anti-rust gasification agent, and the exposure time to the air shall not exceed 4 hours. Through the above standardized use, the protective performance of Anti Rust VCI Paper can be maximized and the anti-rust life of metal products can be extended.

Storage requirements for barrier VCI paper:

Products sealed with barrier VCI paper should be stored in a cool, dry, well-ventilated warehouse, avoiding direct exposure to rain, direct sunlight, wet ground, high temperature heat source and acidic and alkaline corrosive substances. Products packaged with VCI packaging paper should be stacked at least 0.1 meters above the ground and prevented from being squeezed by heavy objects to avoid damage to the packaging. The temperature in the warehouse should be controlled below 40℃ and the relative humidity should be kept below 85%. Under the above storage conditions, Anti Rust VCI Paper can be kept for 3 years from the date of delivery.

About us:

CVCI was founded in 1989, our company has focused on VCI anti-rust materials for over 25 years. We have 5 production bases and 3 R&D centers, exporting our products to over 40 countries and serving more than 8,000 customers. Equipped with a CNAS-certified laboratory (4000+ square meters) and over 100 testing devices, our overall production capacity exceeds 1500 tons per month, ensuring stable support for global customer needs.

FAQ:

1. What is the difference between Barrier type and regular VCI paper?

Barrier type has an added barrier layer, providing stronger moisture resistance and making it suitable for high humidity and long-term transportation.

2. How long is the rust protection period?

Under sealed conditions, it can last 12–24 months.

3. What is the minimum order quantity?

The standard MOQ is 300kg.

4. Is customization supported?

Customization of grammage, structure, width, and printing is supported.

5. Can you provide test reports?

Yes, we support SGS, RoHS, REACH, and technical documents.
